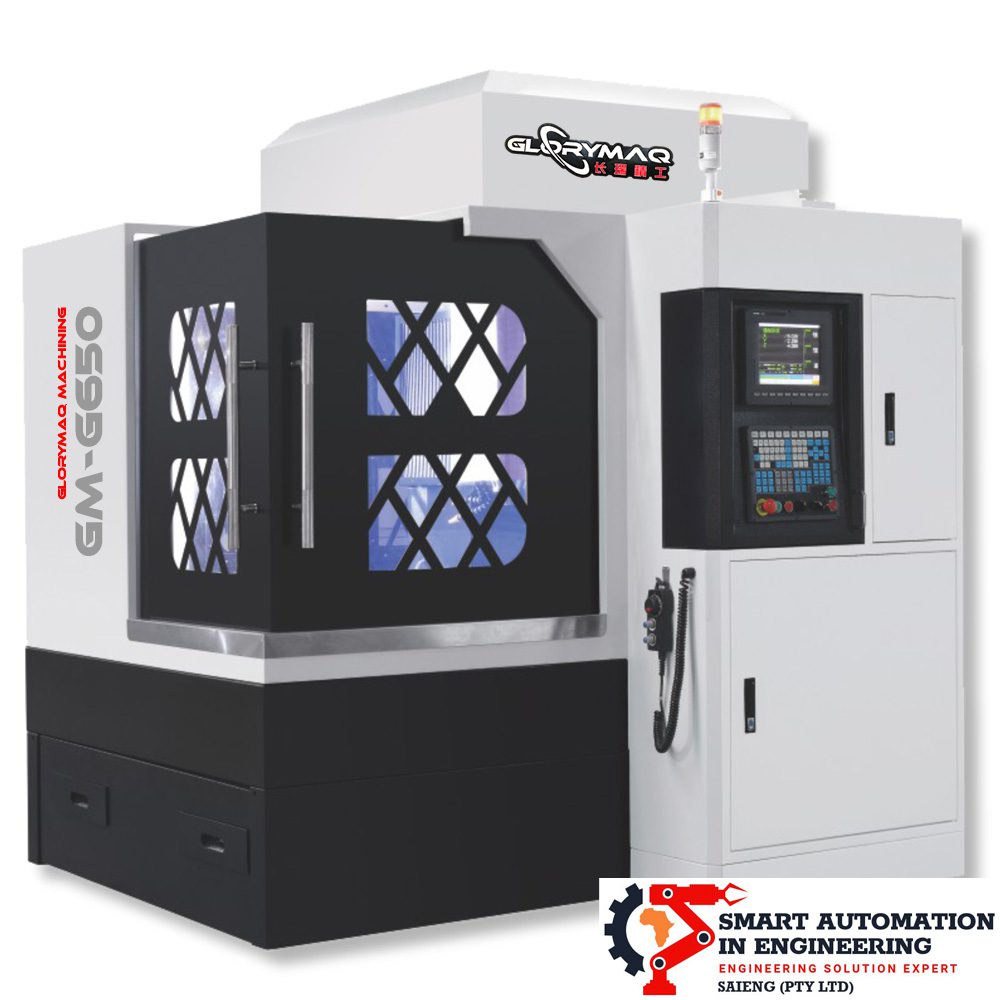

High-Precision CNC Engraving and Milling Machine
The High-Precision CNC Engraving and Milling Machine is designed for exceptional accuracy, stability, and efficiency, making it ideal for complex engraving and milling applications.
Key Features & Advantages
- Beam and bed integration technology, ensuring high precision, long service life, and strong impact resistance.
- Gantry-type high-rigid structure, providing superior stability and machining accuracy.
- Three-axis high-precision linear guide rail, featuring imported ball shafts with wear resistance, low friction coefficient, and high positioning accuracy.
- Japanese NSK bearings and imported coupling, optimizing machine longevity and performance.
- High-speed, high-torque, high-precision motorized spindle, enabling smooth machining with low vibration and noise.
- Japan Yaskawa & Sanyo AC drive servo system, delivering stable operation, superior acceleration performance, and high control precision.
Master Standard Configuration
- Three-axis bearing (Japan NSK)
- High-frequency inverter
- Built-in motorized spindle
- Controller for cleaning spindle and guides
- Pulse clamp
- Rolled ball spindles for all three shafts (Dewan ShanghaiYintai/Intime)
- Three-axis travel limit closed
- Centralized automatic lubrication system
- Triple shaft coupling (German system)
- Yaskawa servo motor (Japan)
- Automatic tool configuration instrument
Selective Configuration Options
- Tool Magazine (BT30-8T / BT30-12/16T)
- Graphite filtration system
- Main spindle power (7.5KW)
- Optional high-precision Siemens 828D high-speed control
- High-speed Shirong performance
