Product Specifications
Solar Engine Technical Data
| Model No | SC-100 | SC-150 | SC-180 |
| Physical Parameters | |||
| Power of PV Module (W) | 36V 80W*2 | 36V 205W | 36V 120W*2 |
| LiFePO4 Battery Capacity(Wh) | 25.6V 42AH | 25.6V 60AH | 25.6V 72AH |
| Controller Type | MPPT controller | ||
| Environment Requirements | |||
| Charge Temperature | 0℃~60℃ | ||
| Discharge Temperature | -20℃-60℃ | ||
| Storage Temperature | 0℃~45℃ | ||
| Mounting Recommendations | |||
| Wind Load Rate (mph) | 130 | ||
| Top of Pole(mm) | 60-75 | ||

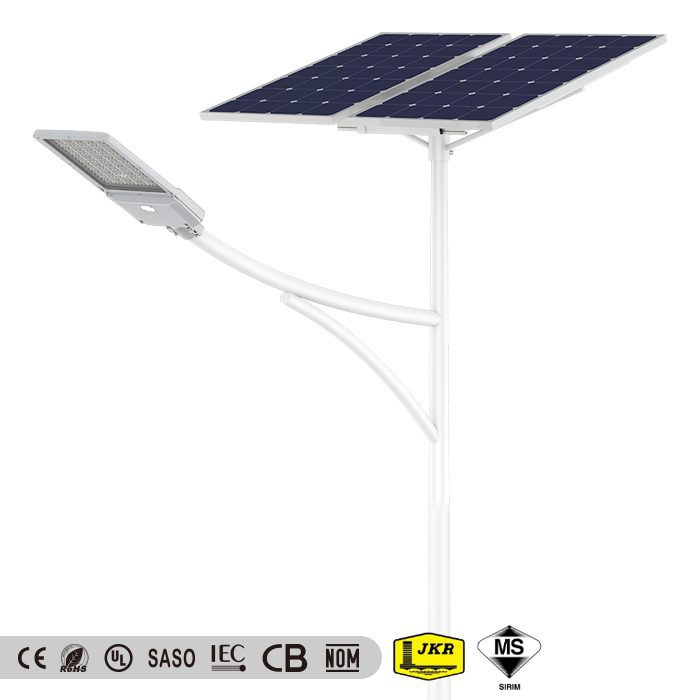

LED Street Light Technical Data
| Light Parameters | |||
| Luminous Flux (lm) | 10000 | 15000 | 18000 |
| Color Temperaure(K) | 4000K-5700K | ||
| Lighting Mode |  |
||
| Physical Parameters | |||
| Net Weight of Product (kg) | 4.43 | 4.92 | 6 |
| Dimension of Product (mm) | 521*220*75 | 521*270*76 | 643*330*77 |
| Packing Parameters | |||
| Dimension of Carton (mm) | 560*330*140 | 620*330*155 | 695*380*155 |
| Gross Weight of Product (kg) | 5.23 | 5.72 | 6.8 |
| Packing (pcs) | 1 | 1 | 1 |
| Mounting Recommendations | |||
| Wind Load Rate (mph) | 130 | ||
| Arm OD (mm) | 60 | ||
