SOFTWARE LICENSE NOT INCLUDED
The Internet of Things refers to connecting any object to the network through information sensing devices according to agreed protocols. Objects exchange and communicate information through information dissemination media to achieve intelligent identification, positioning, tracking, supervision and other functions.

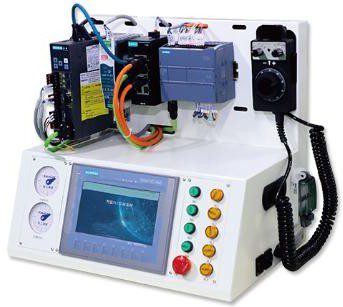

The equipment adopts a sheet metal structure, that is, the PLC , execution control board, IoT gateway, and power supply are all installed on a sheet metal box. The function of the execution board has been fixed (that is, the input and output of the I /O signal has been fixed), and the wiring between the PLC, touch screen, and gateway has been connected according to the function.
Product Specifications
Main Configuration
1. PLC Module
Equipment configuration Siemens S7-1200 series PLC module, CPU 1212C, compact CPU, DC/DC/DC, onboard I/O: 8DI 24V DC; 6 24V DC digital outputs; 2AI 0-10V DC, power supply: DC 20.4-28.8V DC, program memory/data memory 75KB
2. HMI Module
KTP700 Basic, Basic Panel, Key/Touch Operation, 7″ TFT Display, 65536 Colors, PROFINET Interface
3. Switch Module
Power supply specification 9.6V~60VDC Number of ports: 5
Working temperature -40℃~75℃
Port type: 5 10/100M adaptive RJ45 ports
4. IoT Gateway Module
SIMATIC IOT2050; 2xGB Ethernet RJ45; Display port; 2x USB2.0; 16GB eMMc; SD card slot; 24V DC industrial power supply.

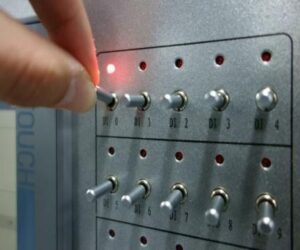

5. IO Input & Output Signals
Provide button switches and LED indicators, connected to the IO terminals of the PLC.
Experimental Content
1. PLC switch quantity instruction practice
2. PLC analog instruction practice
3. Conversion and calculation of PLC data types
4. Programming for execution objects
5. Application of IoT module
6. Production of monitoring screen
Technical Parameters
1. Input power: AC220V ±10% 50 Hz
2. Output power: DC24V
3. Device capacity: <0.3 KVA
4. Equipment size: not less than: 400 * 260 * 300mm
5. Operating environment: -10℃–45℃, relative humidity <90% RH
