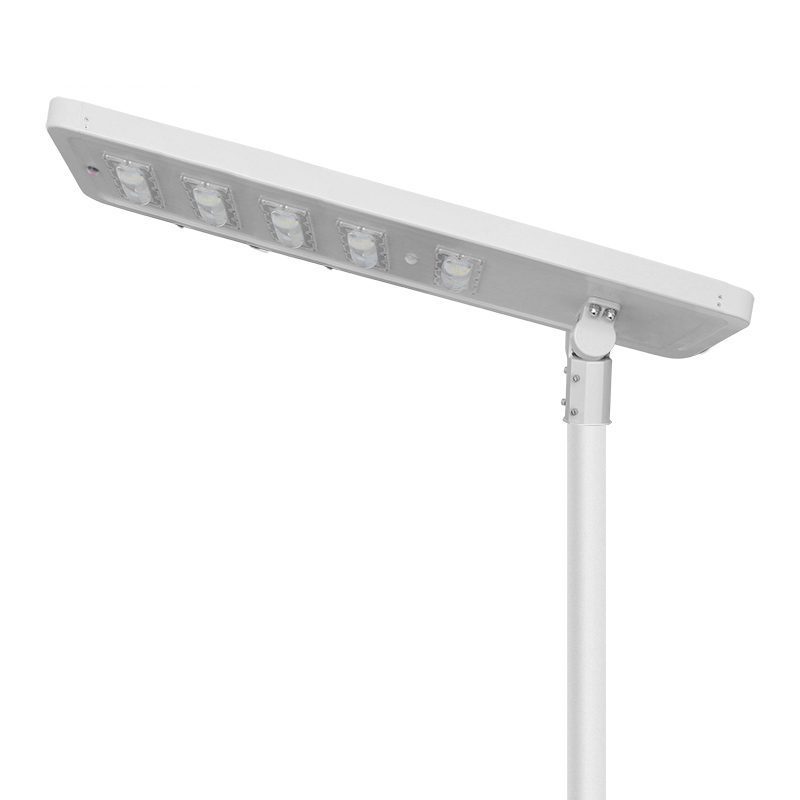

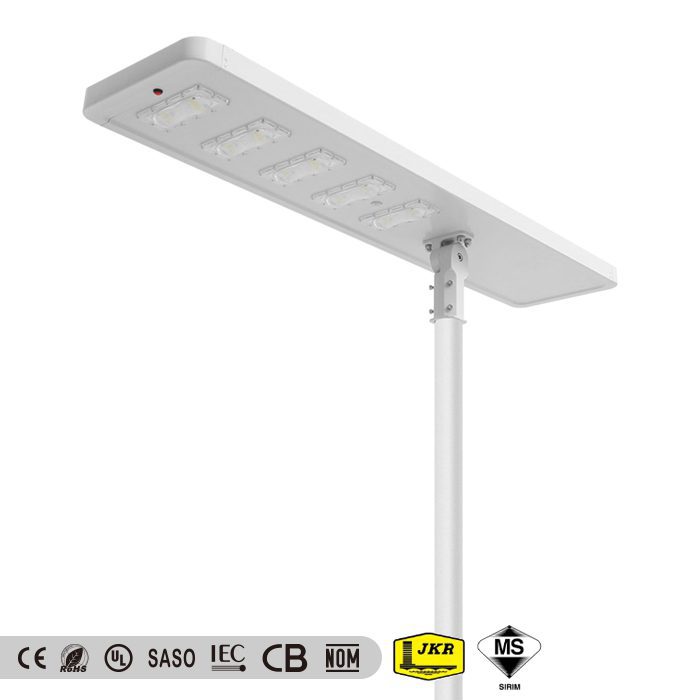

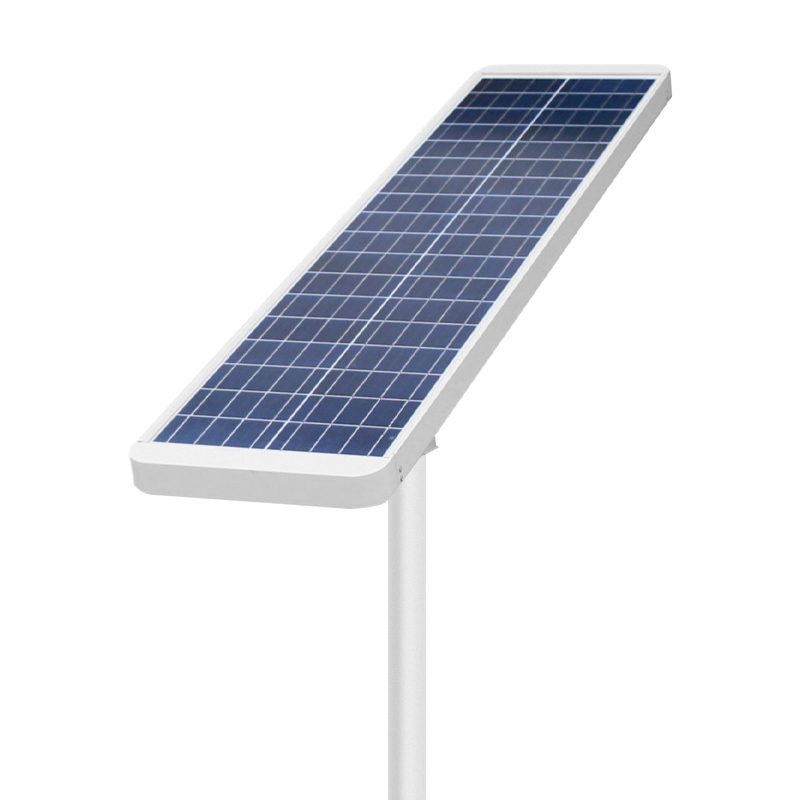

High lumen 80w 11000 lm all in one solar street light for 2 lanes

Product Specifications

Model No	EBM-30	EBM-40	EBM-60	EBM-80
Solar Panel	40W	60W	70W	90W
Battery(Lithium-ion)	222WH	388.5WH	444WH	583WH
Luminous Flux	4200lm	5500lm	8100lm	11000lm
Led Chips
Warranty	2 years
Color Temp	4000K-6500K
Beam Angle	TYPE III
Lamp Angle	0/15/30 degree vertically
PIR Sensor	Yes(Optimum detecting range:6-8m)
Standard Working Mode	First 3 hours full brightness,last 9 hours in PlR sensor mode (60% brightness with people, 30% brightness without people)
Back Up Time	3 nights
Working Temperature	-20°C to 60°C
Charging Time	7-9hrs
Required Pole Size	60 mm(top end)
IP/lK Class	IP66 / lK08
Installation Height	4-5m	4-6m	6-8m	7-9m
lnstallation Distance	15m	20m	25m	25m
Lamp Body	870×485×185mm	1180×485×185mm	1390×485×185mm	1640×485×185mm
N.W(KGS)	11.0	15.0	17.5	20.5
G.W(KGS)	13.0	17.5	19.5	23.5
20GP	360 sets	240 sets	224 sets	216 sets
40GP	732 sets	504 sets	448 sets	372 sets
40HQ	854 sets	588 sets	528 sets	441 sets
